Industrial double shaft shredder suitable for recycling a wide variety of difficult materials
Industrial double shaft shredder  suitable for recycling a wide variety of difficult materials
Industrial double shaft shredder  suitable for recycling a wide variety of difficult materials
Industrial double shaft shredder  suitable for recycling a wide variety of difficult materials
Model
SPT1400S

Review

Description

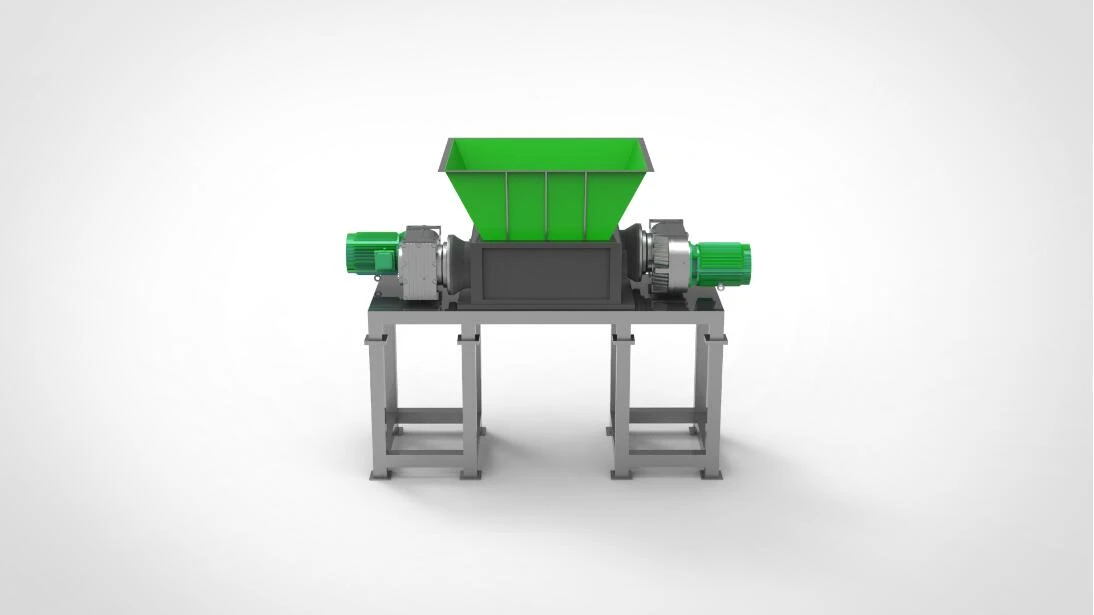

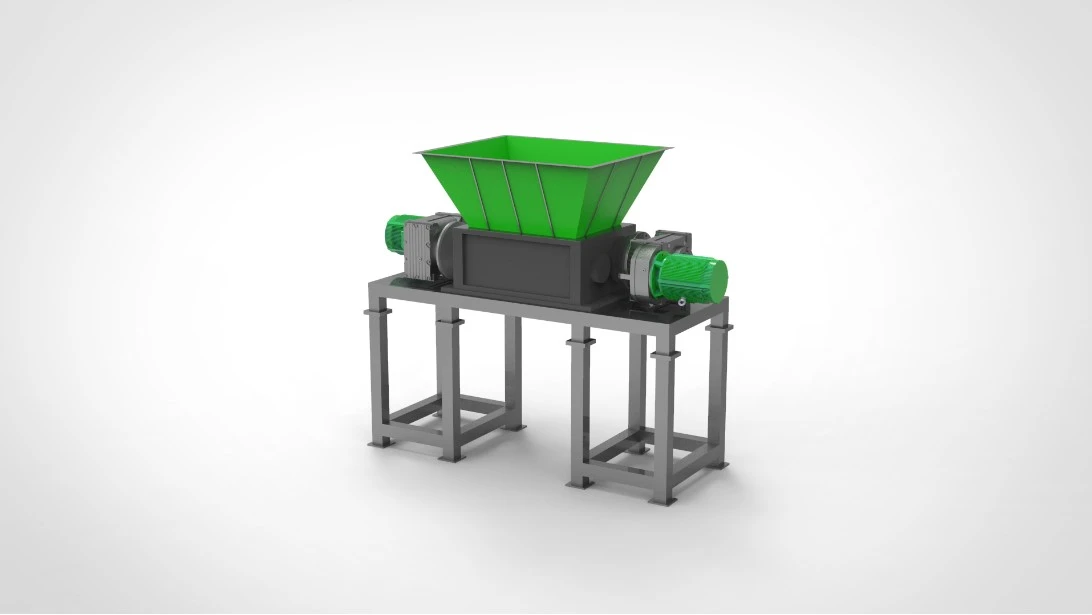

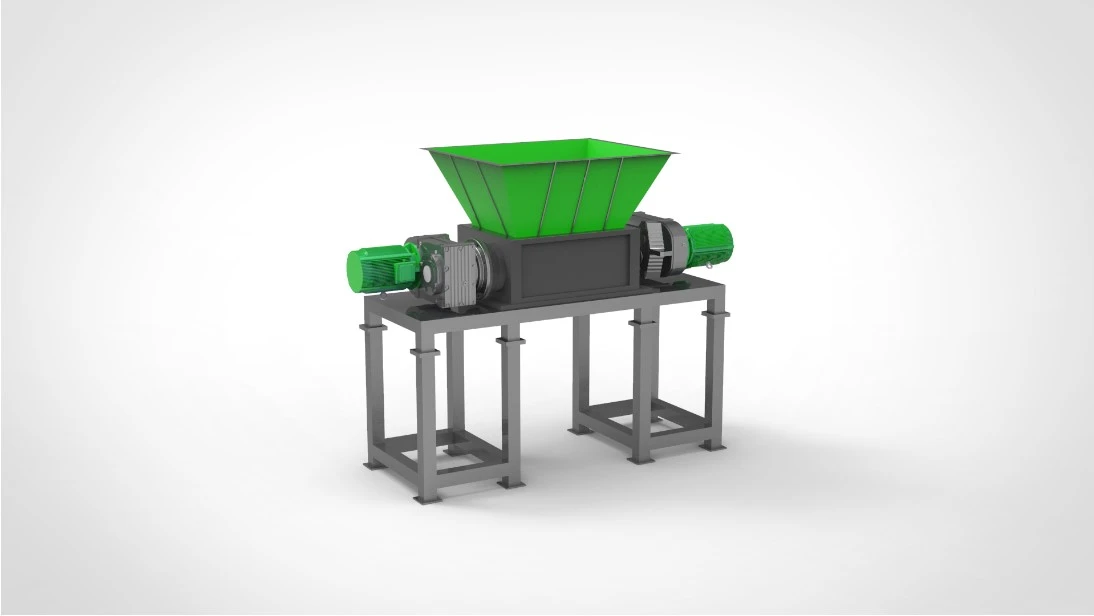

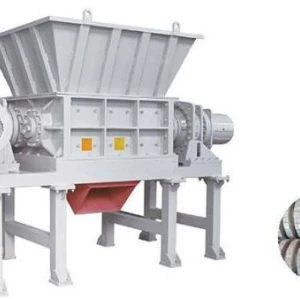

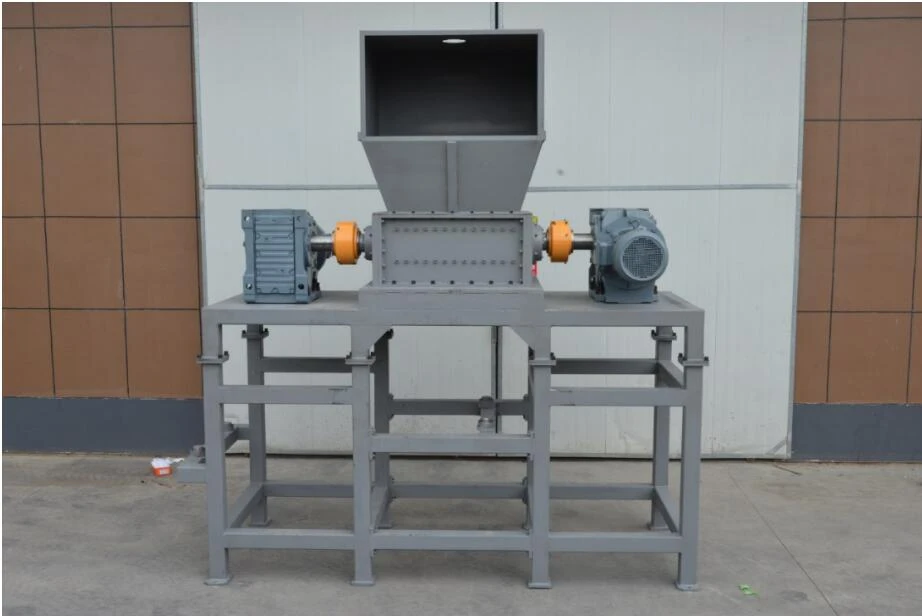

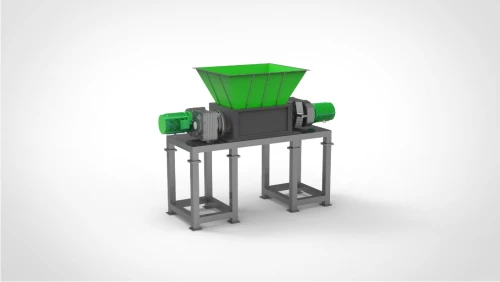

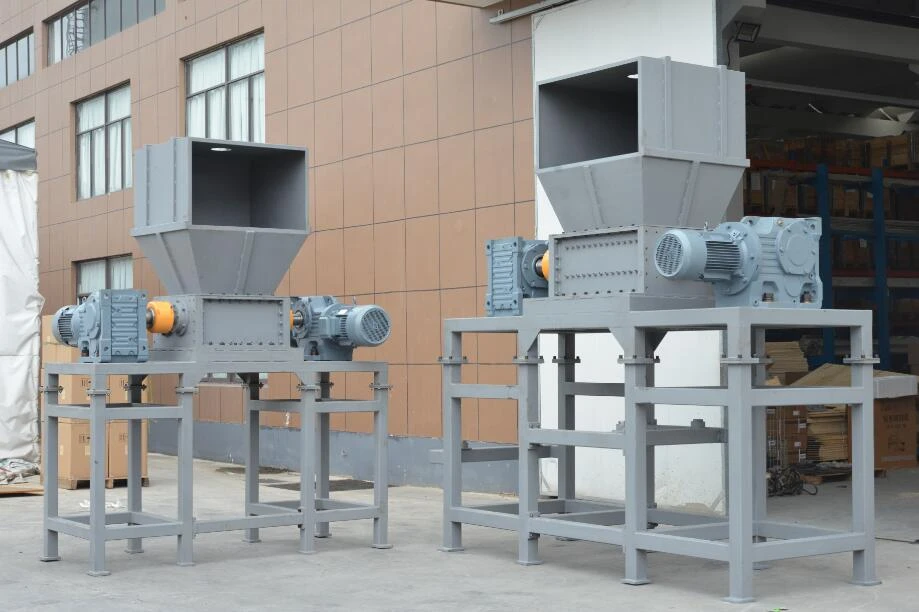

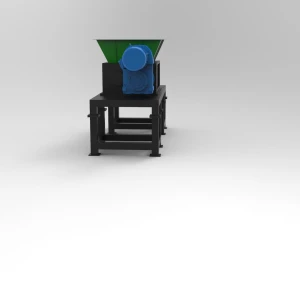

Industrial Double shaft shredder for difficult solid waste recycling

Our Gator series double shaft industrial shredders are designed to efficiently process a variety of difficult materials. The rugged design, replaceable wear protection and extremely high torque rotors all result in high pre-shredding throughputs. This shredder is a workhorse and has proven itself by standing up to demanding recycling applications and environments such as appliance pre-shredding, tire recycling, waste paper and plastics shredding and various other rubber and electronics applications. The chamber is protected by wear plates and the replaceable cutters are made of wear resistant steel to fit the application.

Application:


*Paper - Documents, waste paper;

*Plastic- Reclaimed plastic, waste plastic;

*All types of tires— Car tires, van tires, truck tires, mining tires etc;

*Packing materials: Cardboard and woven sacks;

*Metal— scrap car, waste metal sheet, baled aluminum, metal drum etc.

*E-waste— WEEE waste, printers, refrigerator, cooper wire cable, printed circuit boards etc.

*Wood— Wood pallets, wood block, waste wood.

*Solid waste- MSW waste etc.

=
  • Advantages:

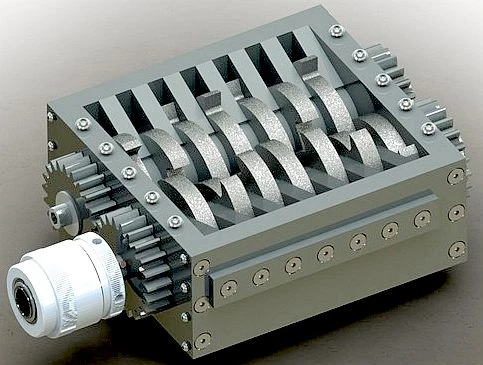

  • *Dual-shaft/dual-rotor design with differential shaft speeds

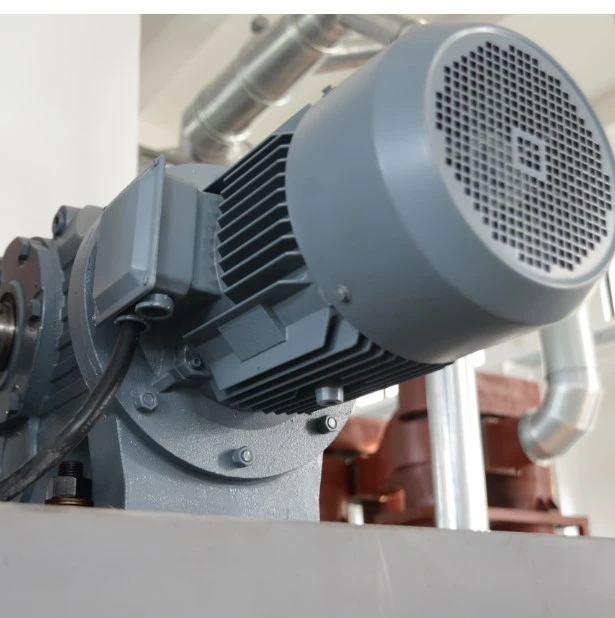

  • *Heavy duty internal gearbox
  • *Custom blade widths to match your required sizing

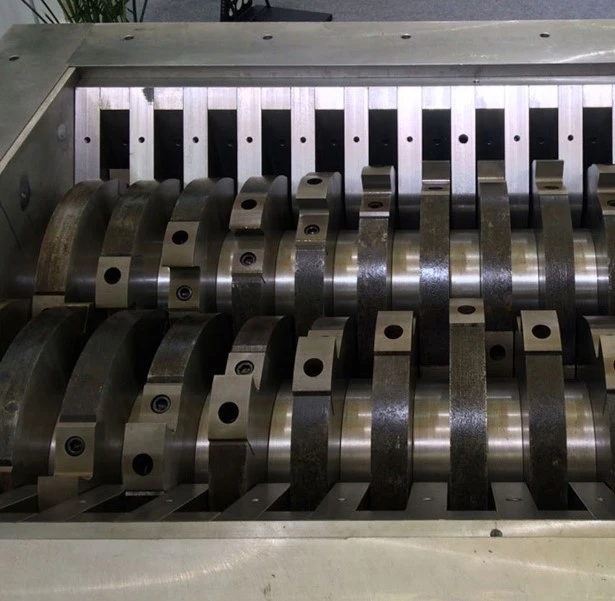

  • *High Alloy blades materials with optional hard-facing to increase cutting effectiveness
  • *Recirculation systems for multi-pass processing if needed to meet required size reduction
  • *Choice of drive system (hydraulic or electric)

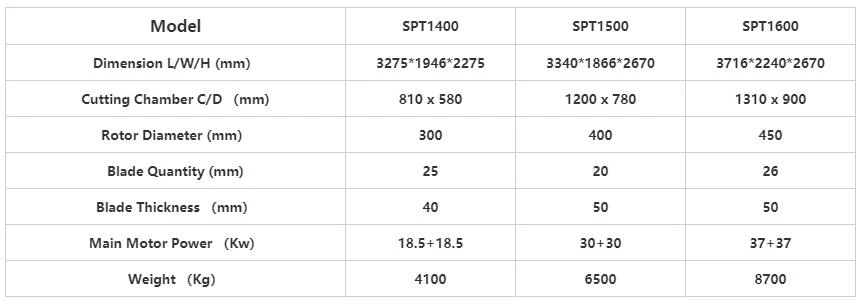

Technical Data:
Model
SPT1400
SPT1500
SPT1600

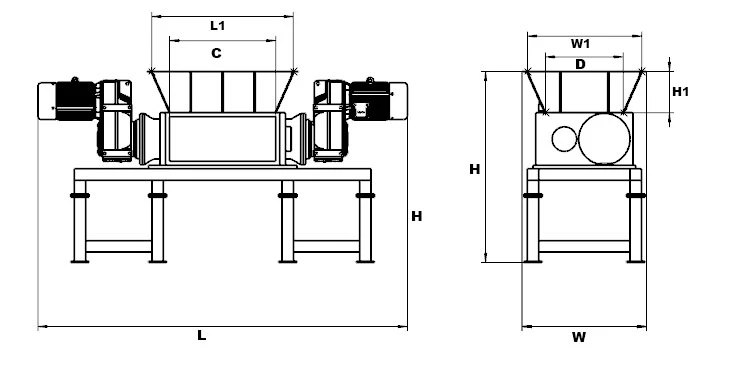

Dimension L/W/H (mm)
3275*1946*2275
3340*1866*2670
3716*2240*2670
Cutting Chamber C/D (mm)
810 x 580
1200 x 780
1310 x 900
Rotor Diameter (mm)
300
400
450
Blade Quantity (mm)
25
20
26
Blade Thickness (mm)
40
50
50
Main Motor Power (Kw)
18.5+18.5
30+30
37+37
Weight (Kg)
4100
6500
8700

The size of shreds is quite random, custom blade widths can match your required sizing

Technical Data
